Trident 2 Pitching Instructions

The Trident 2 is a flysheet-first, semi-geodesic tent for 3-4 season camping. Read the Trident 2 tent pitching instructions below:

1. Unpack the tent and lay out flysheet and inner. (Note: The inner tent is already attached to the inside of the flysheet).
2. Carefully assemble the three alloy poles ensuring that all joints are fully connected.

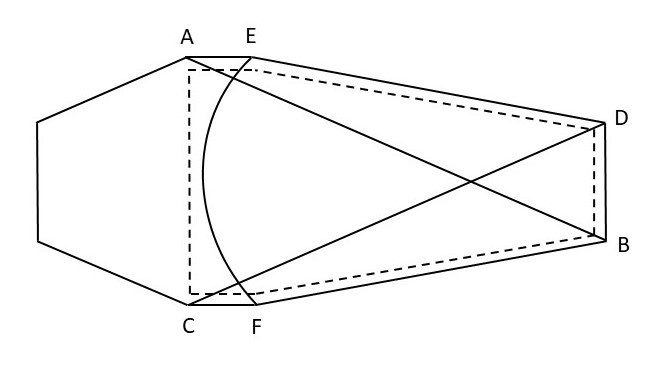

3. Match the pole colour to the pole sleeve trim and insert each pole (A to B, C to D and E to F)
4. Insert the pole tip at points B and D into the outer most eyelet and with gentle pressure push from point A and then C and insert the pole tip into the outermost eyelet. Now create the arch with the cross pole E to F by inserting the pole tips into the outermost eyelet.
5. You can now adjust the pole tip of each pole into the most appropriate eyelet to create the correct flysheet tension. (Never force the poles)
6. Peg out in the following order:-

• a) Both ends of the flysheet.
• b) The remaining flysheet elastics plus guy lines.

The Wild Country Trident 2 is supplied with:

• 3 alloy poles
• 16 x alloy pegs
